Bilstein B8 5100 46mm Monotube Shock Absorber - Bilstein 24-302043

Authorized Dealer
Bilstein Parts & Accessories
  • Bilstein B8 5100 46mm Monotube Shock Absorber - Bilstein 24-302043

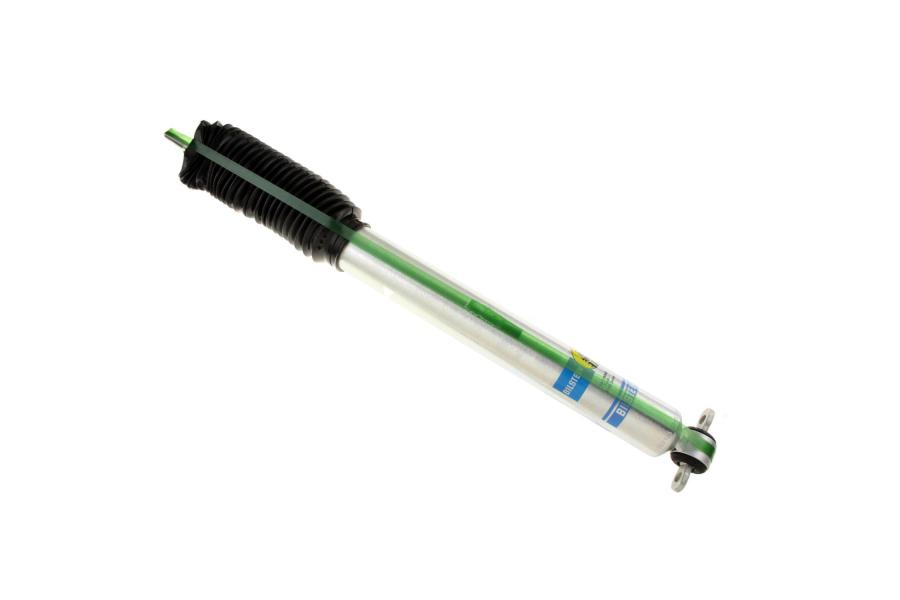

  • Sample Image, Actual Part May Differ

Select Your Vehicle

Ratings: (0 reviews)
  • Part#: 24-302043
  • Price: $110.00
  • 0 In Stock
  • Shipping: Free Shipping

Bilstein 5100 Series Shock Absorbers

5100 Series Shock Absorbers by Bilstein. Due to their larger tires and heightened stance, lifted vehicles place extra demands on a shock absorber‘s damping ability. BILSTEIN B8 5100 shock absorbers monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, BILSTEIN B8 5100 shock absorbers instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride.

Features & benefits:

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
  • OEM certified mounting hardware allows for easy installation
  • Zinc plated for resistance against harsh elements
  • Made in the USA
  • Limited lifetime warranty

Ride height:

2" - 6"

California Residents: Prop 65 WARNING

Bilstein B8 5100 46mm Monotube Shock Absorber 24-302043 is available for the following vehicles:

Please click on next to the vehicle for specific year information.
Year range Make Model Sub Model Drivetrain Notes
2019-2020 Dodge Ram 2500 Tradesman 4WD
  • For Rear Lifted Height: 0-1"
2019-2020 Dodge Ram 2500 Lone Star 4WD
  • For Rear Lifted Height: 0-1"
2019-2020 Dodge Ram 2500 Limited 4WD
  • For Rear Lifted Height: 0-1"
2019-2020 Dodge Ram 2500 Laramie 4WD
  • For Rear Lifted Height: 0-1"
2019-2020 Dodge Ram 2500 Laramie Longhorn 4WD
  • For Rear Lifted Height: 0-1"
2019-2020 Dodge Ram 2500 Big Horn 4WD
  • For Rear Lifted Height: 0-1"
If this Bilstein 5100 Series Shock Absorbers is not exactly what you are looking for to accessorize your 2019-2020 Dodge Ram, please don't give up just yet. Our catalog has huge selection of parts and accessories for your Dodge Ram.

Specifications

Finish: Zinc Plated
Position: Rear
Body Design: Smooth Body (Non-coilover)
Body Diameter (ID): 46mm
Boot Included: Black Bellows
Collapsed Length (IN): 16.48
Collapsed Length (MM): 418.5
Extended Length (IN): 24.96
Extended Length (MM): 634
Internal Design: Monotube
Lower Mount Type: Eye 14.4mm
Reservoir: No
Series: B8 5100
Upper Mount Type: Stem
